Kartar Sluice & Resilient Seated Gate Valves
Waterworks isolation to IS:14846 — cast-iron sluice valves in rising and non-rising spindle with cap or handwheel, and ductile-iron resilient-seated gate valves including the AQUA range, in PN-1.0 and PN-1.6. Cast steel gate valves extend the range to Class 150 and Class 300. ½" through 40".
Class
PN-10 – Class 300
Size
½" – 40"
Materials
4
Full Specification
SpecificationKARTAR-SLUICE-GATE-VALVES
- Pressure Class
- PN-10 / PN-16 / Class 150 / Class 300
- Size Range
- ½" – 40"
- Body Materials
- Cast Iron (CI), Ductile Iron (DI), Carbon Steel (CS), Gun Metal (GM)
- Standards
- IS:14846, IS:778, BS 5163, EN 1074-1, EN 1074-2
- End Connections
- Flanged, Threaded
- Documentation
- MTC EN 10204 3.1 with every lot; 3.2, IBR Form III-C, hydro test reports per PO
Construction & Features
- CI sluice valves — non-rising with cap or handwheel, and rising spindle
- D.I. resilient-seated gate valves, PN-1.6, with epoxy coating
- AQUA range resilient-seated variant
- Cast steel gate valves to Class 150 and Class 300
- Design to IS:14846, BS 5163 and EN 1074
Applicable Industries
Catalogue References (21)
Manufacturer codes and published specifications for this line. Quote the code on your enquiry and we'll come back with availability, documentation coverage and pricing.
| Code | Description | Sizes | Rating | Body material | Ends |
|---|---|---|---|---|---|
| K501 | Kartar Cast Iron Sluice Valve - Non-Rising With Cap | 1" – 23" | PN1.0 | Cast Iron | — |
| K503 | Kartar Cast Iron Sluice Valve - Non-Rising With Cap | 2" – 19" | PN1.6 | Cast Iron | — |
| K502 | Kartar Cast Iron Sluice Valve - Non-Rising with Handwheel | 1" – 23" | PN1.0 | Cast Iron | — |
| K504 | Kartar Cast Iron Sluice Valve - Non-Rising with Handwheel | 2" – 19" | PN1.6 | Cast Iron | — |
| K505 | Kartar Cast Iron Sluice Valve- Rising Spindle | 1" – 23" | PN1.0 | Cast Iron | — |
| K506 | Kartar Cast Iron Sluice Valve- Rising Spindle | 2" – 19" | PN1.6 | Cast Iron | — |
| K507 | Kartar Gear for Sluice Valve & Resilient Gate Valve | 1" – 23" | Box Type Enclosed Gear Box | — | — |
| K601 | Kartar Gun Metal (Bronze) Gate Valve | " – 3" | PN1.0 (CI-I) | Gun Metal, Bronze | Screwed |
| K511 | Kartar D.I Resilient Seated Gate Valve- Non Rising (PN 1.6) | 1" – 39" | with Handwheel | — | — |
| K511C | Kartar D.I Resilient Seated Gate Valve- Non Rising (PN 1.6) | 1" – 11" | with Cap | — | — |
| K511 R | Kartar D.I Resilient Seated Gate Valve- Rising with HW | 1" – 23" | PN1.6 | — | — |
| K511 EH | Kartar D.I Resilient Seated Gate Valve (Model- AQUA)- Non Rising (PN 1.6) | 3" – 7" | with Handwheel | — | — |
| K511 EC | Kartar D.I Resilient Seated Gate Valve (Model- AQUA)- Non Rising (PN 1.6) | 3" – 7" | with cap | — | — |
| K534 | Kartar Electrical Actuator for Non Rising Sluice Valve & RGV'S | — | — | — | — |
| K535 | Kartar Extension Stem for Non Rising Sluice Valve & RGV'S | — | — | — | — |
| K536 | Kartar Supervisory Switch Arragement for Sluice Valve & RGV'S | — | — | — | — |
| K401 | Kartar Cast Steel Gate Valve (CI-150) | 1" – 11" | — | Carbon Steel | — |
| K404 | Kartar Cast Steel Gate Valve (CI-300) | 1" – 9" | — | Carbon Steel | — |
| K504-X | Kartar Cast Iron Sluice Valve - Non-Rising with Handwheel | 3" – 7" | PN 1.6 | C.I. | Flanged |
| K504-XX | Kartar Cast Iron Sluice Valve - Non-Rising with Handwheel | 3" – 7" | PN 2.0 | D.I. | Flanged |
| K504-XXX | Kartar Cast Iron Sluice Valve - Non-Rising with Handwheel | 3" – 7" | PN 2.5 | D.I. | Flanged |
Related Product Lines

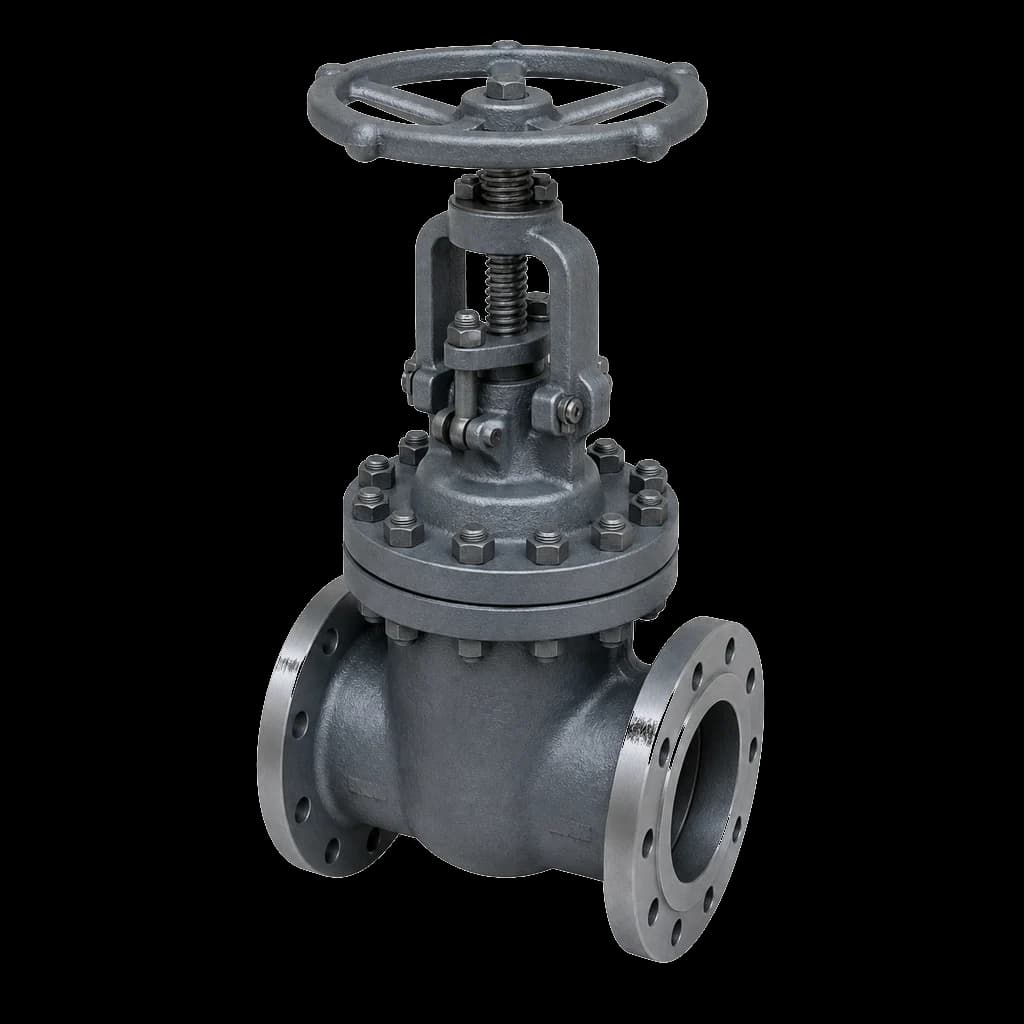

Leader Gate Valves
- Class
- Class 150 – PN-16
- Size
- ½" – 24"
- Matl
- CS · SS · Brass · Bronze · GM · CI · DI
Request for Quote
Need Kartar Sluice & Resilient Seated Gate Valves?
Send size, class, material and quantity — we respond with availability, documentation coverage and pricing, typically within 4 business hours.
