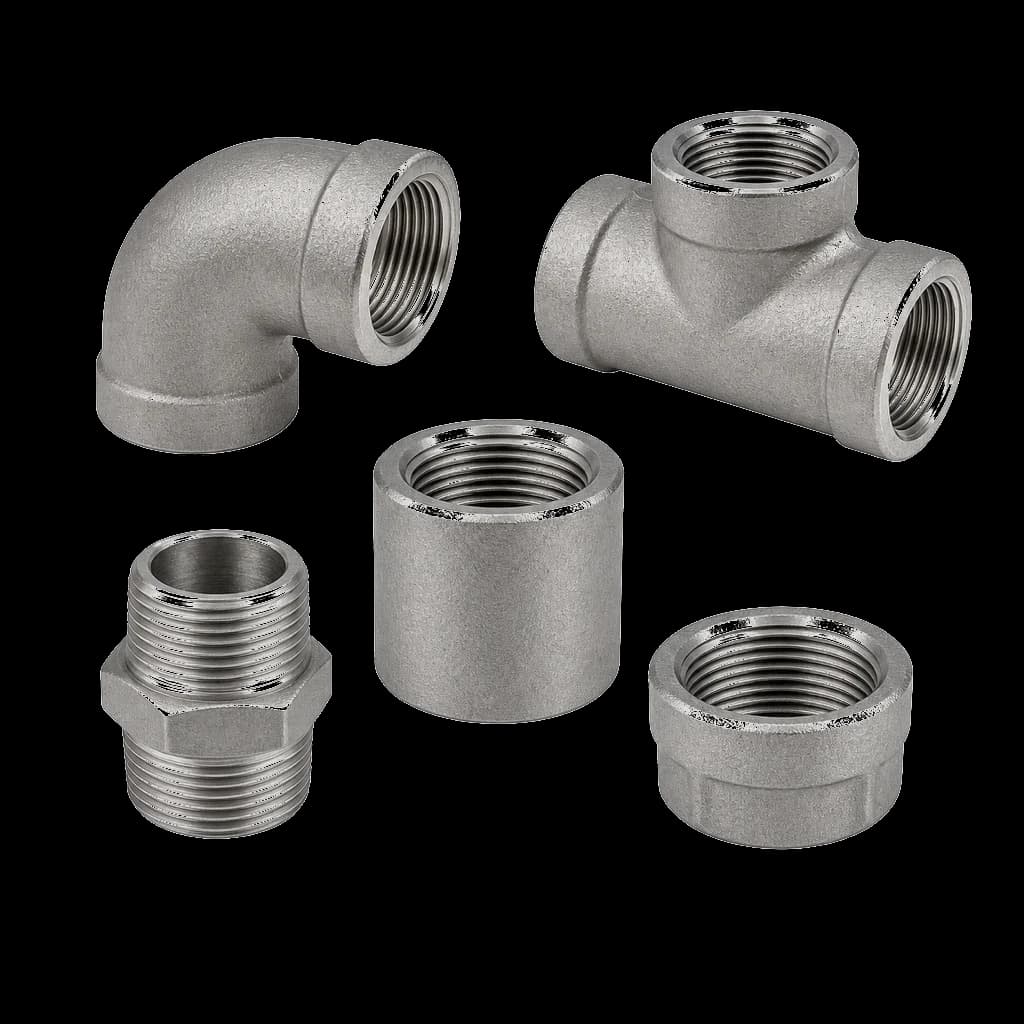

Atam Stainless Steel Threaded Fittings
Investment-cast stainless steel screwed fittings in CF8 (SS 304) and CF8M (SS 316) — elbows, tees, crosses, sockets, unions, nipples, bushings, caps and plugs — rated PN-25 with a 30 kg hydraulic test. The corrosion-resistant counterpart to the carbon-steel forged fitting range, ¼" to 8".
Class
Size
¼" – 8"
Materials
1
Full Specification
SpecificationATAM-SS-THREADED-FITTINGS
- Pressure Class
- Size Range
- ¼" – 8"
- Body Materials
- Stainless Steel (SS)
- Standards
- PN-25
- End Connections
- Threaded
- Documentation
- MTC EN 10204 3.1 with every lot; 3.2, IBR Form III-C, hydro test reports per PO
Construction & Features
- CF8 (SS 304) and CF8M (SS 316) investment castings
- PN-25 rating, 356 psig working pressure
- Full range: elbows, tees, crosses, sockets, unions, nipples, bushings, caps, plugs
- Suitable for water, steam, gas, oil and air service
- Screwed ends
Applicable Industries
Catalogue References (19)
Manufacturer codes and published specifications for this line. Quote the code on your enquiry and we'll come back with availability, documentation coverage and pricing.
| Code | Description | Sizes | Rating | Body material | Ends |
|---|---|---|---|---|---|
| AV-537 | Stainless Steel 90° Elbow (AV-537A Reducing Elbow), PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-538 | Stainless Steel Tee (AV-538A Reducing Tee), PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-534 | Stainless Steel Street Elbow, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-531 | Stainless Steel Cross, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-540 | Stainless Steel Union, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-529 | Stainless Steel Round Cap, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-544 | Stainless Steel Square Plug / Dummy, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-532 | Stainless Steel Hex Nut, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-543 | Stainless Steel Reducing Hex Bushing, PN-25 | 4¼" – 8" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-533 | Stainless Steel Reducing Socket, PN-25 | 4¼" – 8" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-541 | Stainless Steel Hex Nipple, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-539 | Stainless Steel Socket, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-535 | Stainless Steel Reducing Hex Nipple, PN-25 | 4¼" – 8" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-542 | Stainless Steel Hose Nipple, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-547 | Stainless Steel Coupling, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-530 | Stainless Steel Hex Cap, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-536 | Stainless Steel Elbow Union, PN-25 | " – 1" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-545 | Stainless Steel Elbow 45°, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
| AV-546 | Stainless Steel Hex Head Plug, PN-25 | " – 3" | PN-25 (Hyd. 30kg) | Stainless Steel | — |
Related Product Lines
VS High-Pressure Threaded End Fittings
- Class
- #2000 Lbs – #6000 Lbs
- Size
- ½" – 4"
- Matl
- CS · SS
- Std
- ASME B16.11 · IS:4712
VS Threaded End Pipe Fittings (#1000 Lbs)
- Class
- #1000 Lbs
- Size
- ½" – 6"
- Matl
- CS
- Std
- IS:1239 Part-II · BS:10241

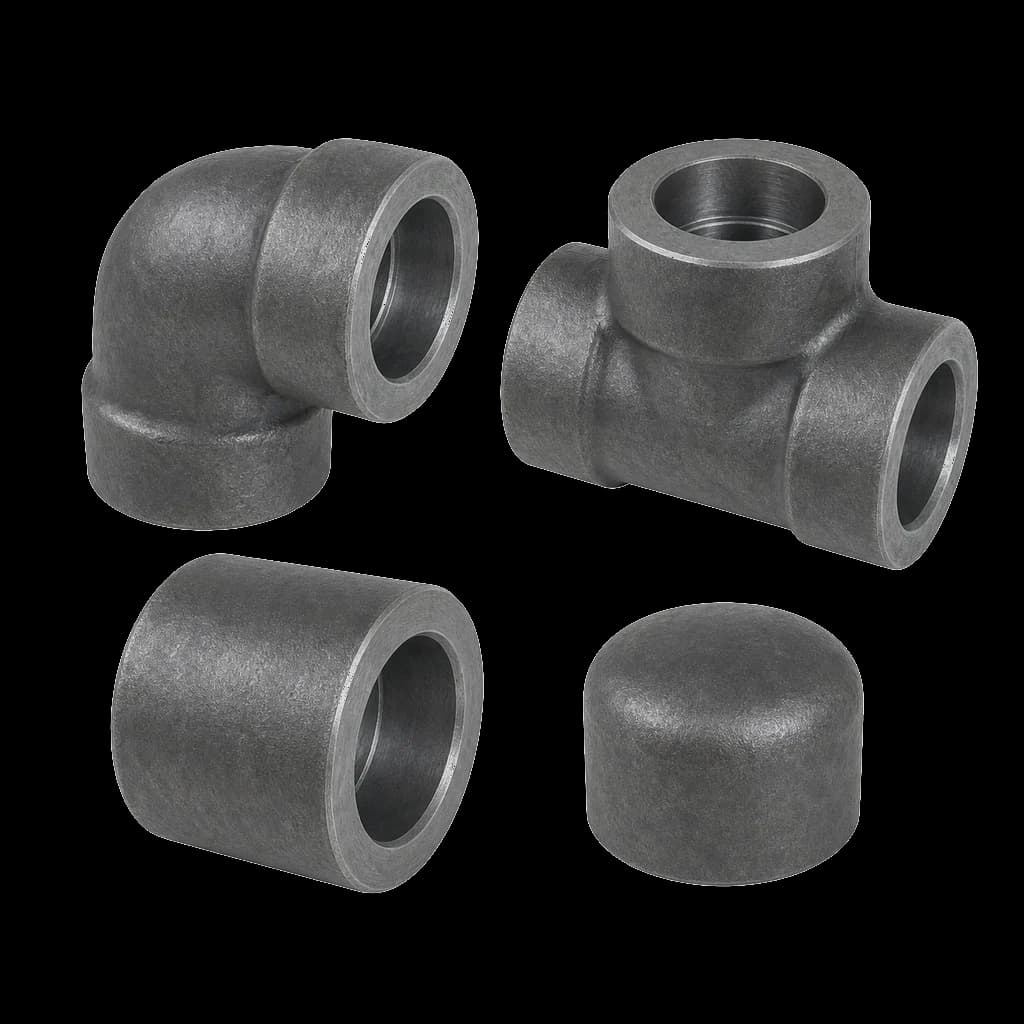

Leader Forged CS High-Pressure Pipe Fittings
