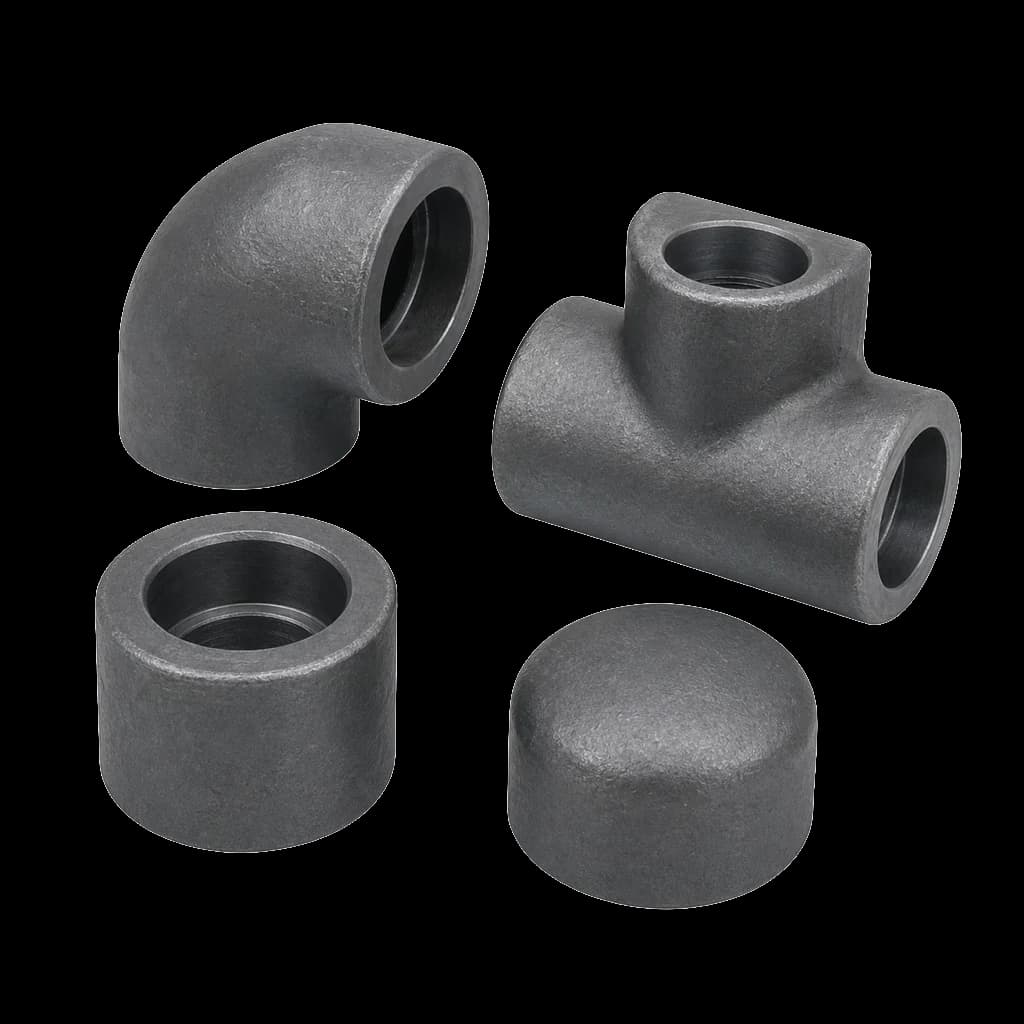

VS Socket Weld End Fittings
- Class
- #3000 Lbs – #9000 Lbs
- Size
- ½" – 4"
- Matl
- CS · SS
- Std
- ASME B16.11 · IS:4712
NVR Ductile Iron Threaded Fittings
Ductile iron threaded fittings to ASME B16.3-2016 in ASTM A536 — 90° elbows, tees, crosses, reducing patterns, straight and reducing couplings, caps, plugs and head bushings, ½" through 2". Class 150, 300 psig WOG, with BSPT or NPT threads. Ductile iron gives markedly better impact and ductility than grey cast iron on the same dimensions.
Class
Class 150
Size
½" – 2"
Materials
1
Full Specification
SpecificationNVR-DI-THREADED-FITTINGS
- Pressure Class
- Class 150
- Size Range
- ½" – 2"
- Body Materials
- Ductile Iron (DI)
- Standards
- ASME B16.3-2016, ASME B16.14-2013, ASTM A536
- End Connections
- Threaded
- Documentation
- MTC EN 10204 3.1 with every lot; 3.2, IBR Form III-C, hydro test reports per PO
Construction & Features
- Ductile iron ASTM A536 — higher tensile and impact than grey CI
- Dimensions to ASME B16.3-2016; plugs and bushings to B16.14-2013
- Class 150, 300 psig working pressure (WOG)
- BSPT (ISO 7-1) and NPT (ASME B1.20.1) threading
- Full pattern range including reducing elbows, tees and crosses
Applicable Industries
Catalogue References (12)
Manufacturer codes and published specifications for this line. Quote the code on your enquiry and we'll come back with availability, documentation coverage and pricing.
| Code | Description | Sizes | Rating | Body material | Ends |
|---|---|---|---|---|---|
| 90-ELBOW | NVR Ductile Iron 90° Elbow | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| TEE | NVR Ductile Iron Tee | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| CROSS | NVR Ductile Iron Cross | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| REDUCING-ELBOW | NVR Ductile Iron Reducing Elbow | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| REDUCING-TEE | NVR Ductile Iron Reducing Tee | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| REDUCING-CROSS | NVR Ductile Iron Reducing Cross | 1" – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| STRAIGHT-COUPLING | NVR Ductile Iron Straight Coupling | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| REDUCING-COUPLING | NVR Ductile Iron Reducing Coupling | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| CAP | NVR Ductile Iron Cap | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| OUTSIDE-HEAD-BUSHING | NVR Ductile Iron Outside Head Bushing | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| INSIDE-HEAD-BUSHING | NVR Ductile Iron Inside Head Bushing | 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
| PLUG | NVR Ductile Iron Plug | " – 1" | CLASS 150 | Ductile Iron ASTM A536 | BSPT (ISO:7-1) / NPT (ASME - B1.20.1) |
Related Product Lines

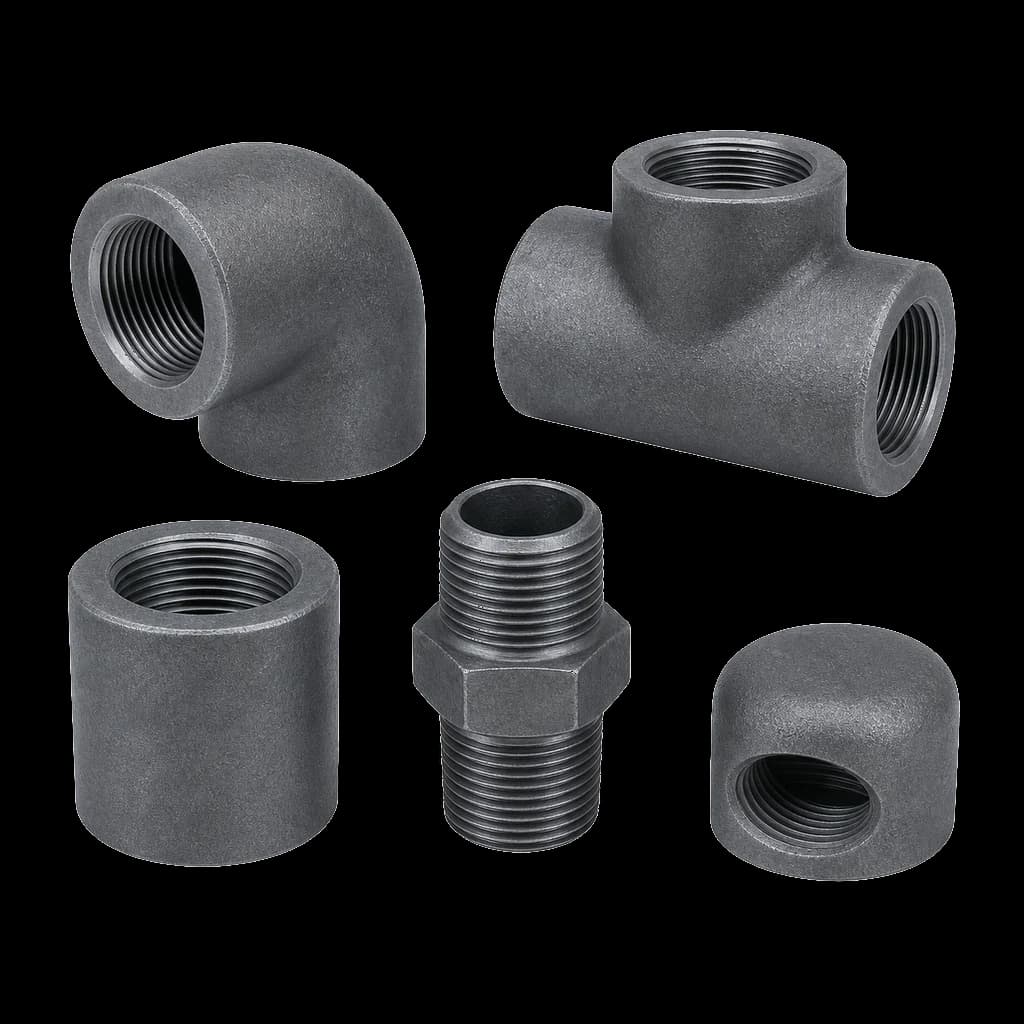

VS High-Pressure Threaded End Fittings
- Class
- #2000 Lbs – #6000 Lbs
- Size
- ½" – 4"
- Matl
- CS · SS
- Std
- ASME B16.11 · IS:4712

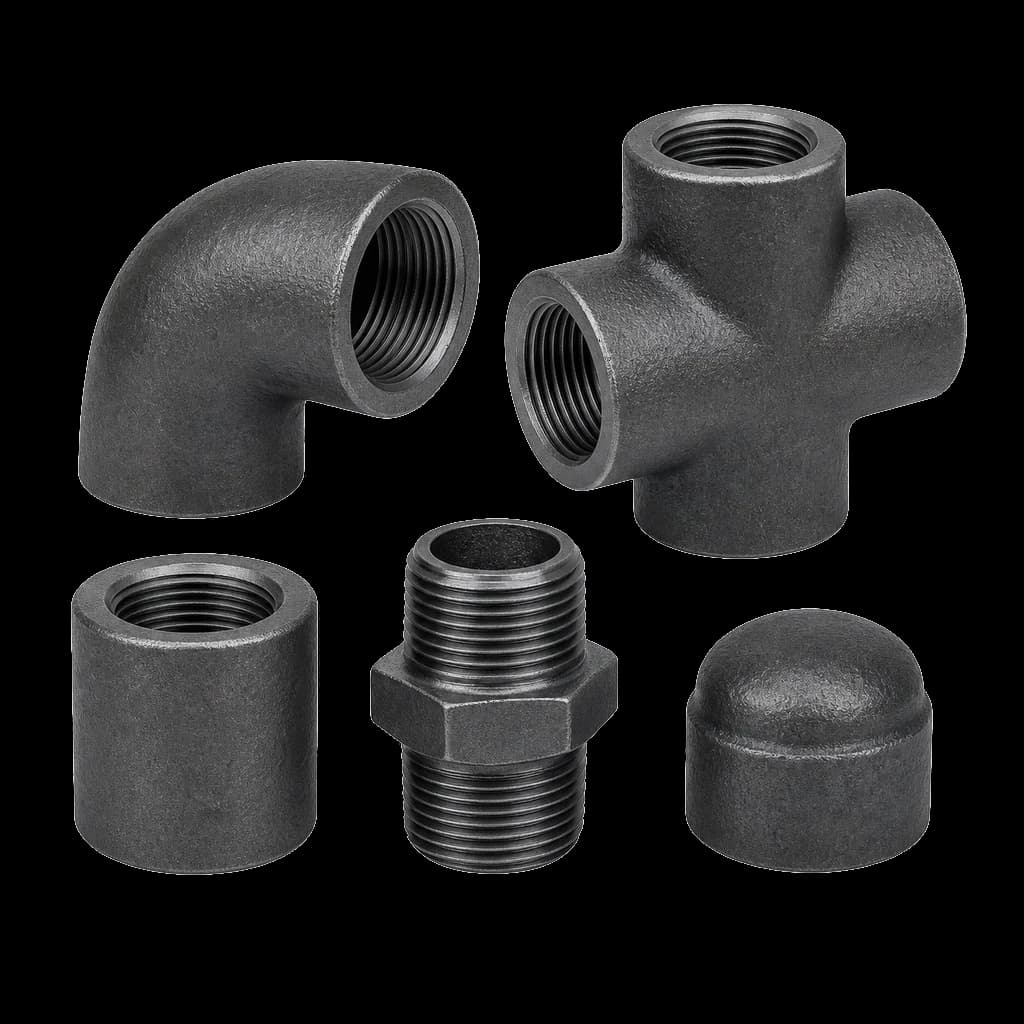

VS Threaded End Pipe Fittings (#1000 Lbs)
