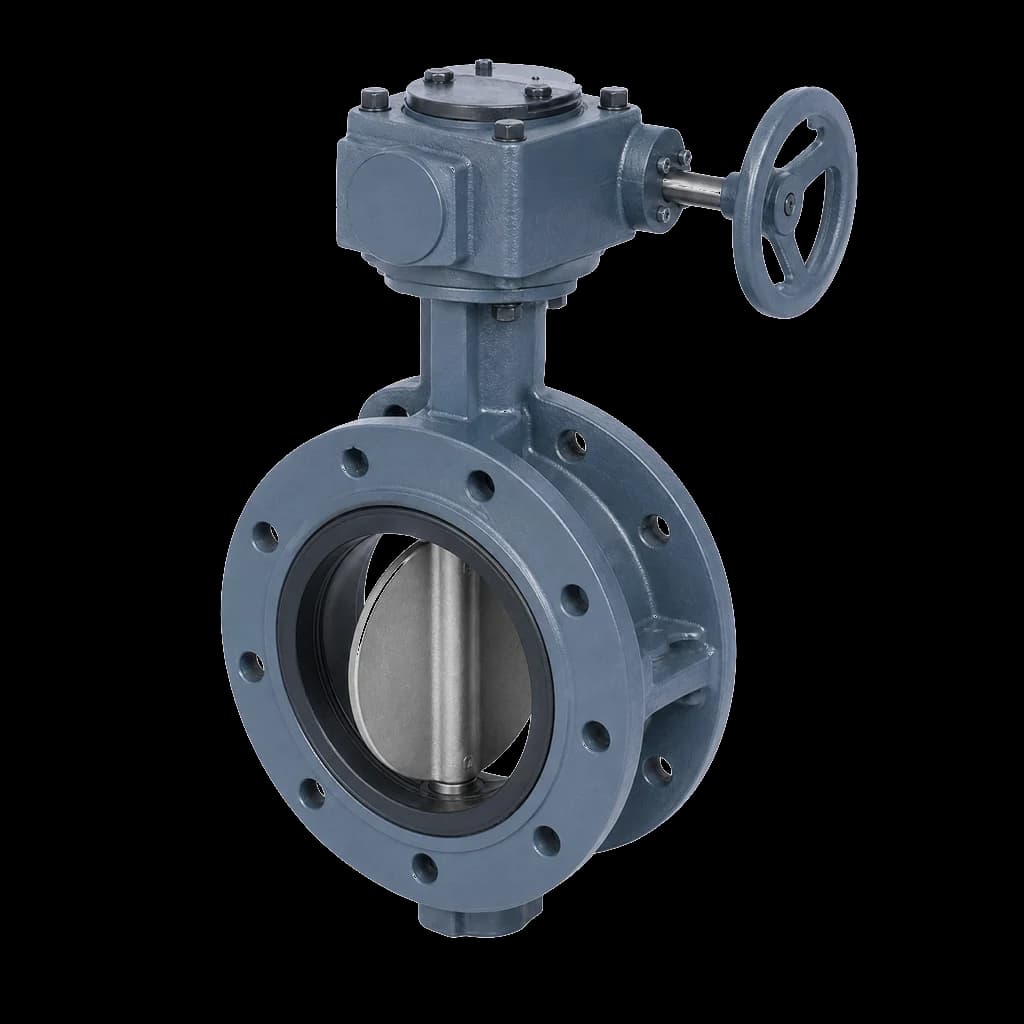

Atam Butterfly Valves
Resilient-seated butterfly valves for large-bore, weight-sensitive lines — water transmission, cooling circuits and fire mains — in cast iron, cast steel and stainless steel to BS EN-593 and IS-13095. PN-10 and PN-16, 1" through 14".
Class
PN-10 / PN-16
Size
1" – 14"
Materials
3
Full Specification
SpecificationATAM-BUTTERFLY-VALVES
- Pressure Class
- PN-10 / PN-16
- Size Range
- 1" – 14"
- Body Materials
- Cast Iron (CI), Carbon Steel (CS), Stainless Steel (SS)
- Standards
- BS EN-593, IS-13095
- End Connections
- Flanged, Wafer
- Documentation
- MTC EN 10204 3.1 with every lot; 3.2, IBR Form III-C, hydro test reports per PO
Construction & Features
- Concentric resilient-seated design to BS EN-593
- Cast iron, cast steel and stainless steel bodies
- PN-10 and PN-16 ratings
- Lever and gear-operated options
- IS-13095 compliance for Indian waterworks tenders
Applicable Industries
Catalogue References (8)
Manufacturer codes and published specifications for this line. Quote the code on your enquiry and we'll come back with availability, documentation coverage and pricing.
| Code | Description | Sizes | Rating | Body material | Ends |
|---|---|---|---|---|---|
| AV-96A | Cast Iron Butterfly Valve, PN-10 | " – 11" | PN-10 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96B | Cast Iron Butterfly Valve, PN-10 | " – 13" | PN-10 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96C | Cast Steel Butterfly Valve, PN-40 | " – 13" | PN-40 | Cast Carbon Steel (ASTM A216 Gr. WCB) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96D | Cast Iron Butterfly Valve, PN-16 | " – 11" | PN-16 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96E | Cast Iron Butterfly Valve, PN-16 | " – 13" | PN-16 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96F | Cast Iron Wafer Type Butterfly Valve as per PN-25 with S.G. Iron Disc. [Actuator available at extra cost] | " – 13" | PN-25 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-96G | Cast Iron Wafer Type Butterfly Valve as per PN-25 with S.G. Iron (CF-8) Disc. [Actuator available at extra cost] | " – 13" | PN-25 | Cast Iron (IS 210 Gr. FG200) | Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E |
| AV-504 | Investment Casting Stainless Steel (CF8) Butterfly Handle Ball Valve, Screwed Ends, PN-40 | " – " | PN-40 | Cast Stainless Steel (ASTM A351 Gr. CF8) | Screwed Female BSP Parallel Threads (BS-21) |
